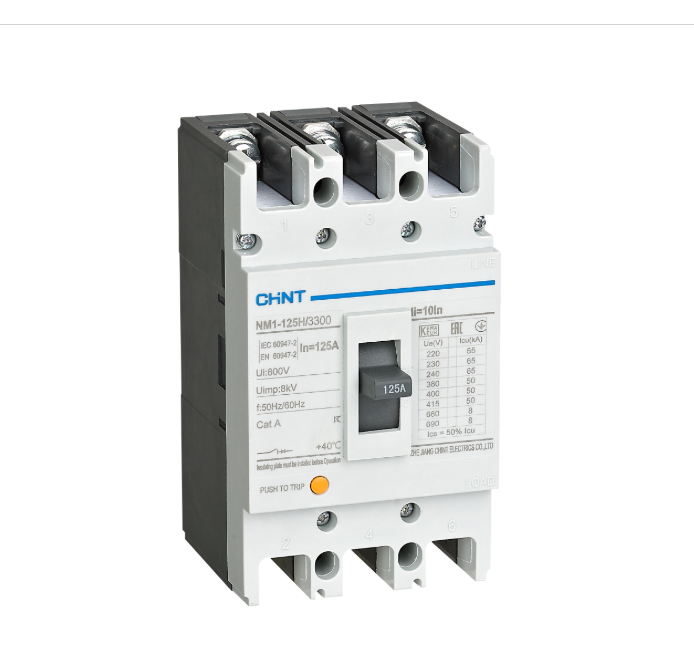

Description
- Rated Current: 10A – 1250A
- Rated Insulation Voltage: 800V; operational voltage up to AC 690V, 50/60Hz
- Frame Sizes: 63A, 125A, 250A, 400A, 630A, 800A, 1250A
- Breaking Capacity Levels: C (basic), S (standard), H (high), R (current limiting)
- Poles: 2P, 3P, 4P (N-pole configurable)
- Operation Modes: Direct handle, rotary handle, or motorized control
- Protection Functions: Overload, short-circuit, under-voltage, and earth fault protection
- Mounting: Vertical and horizontal installation supported
- Standards & Certification: IEC/EN 60947-2; KEMA, EAC, RCC, EK, UKrSEPRO certified
- IP Rating: IP30 (up to IP40 with terminal covers)
- Environmental Limits: −5°C to +40°C operation, ≤2000m altitude
Shipping & Warranty Details:
- Warranty: Sold with a 7-day return warranty for your peace of mind. If the unit does not test successfully or meet specifications upon arrival, you can return it within 7 days for a refund.
- Courier: Available for collection or courier via The Courier Guy.
