Product Overview

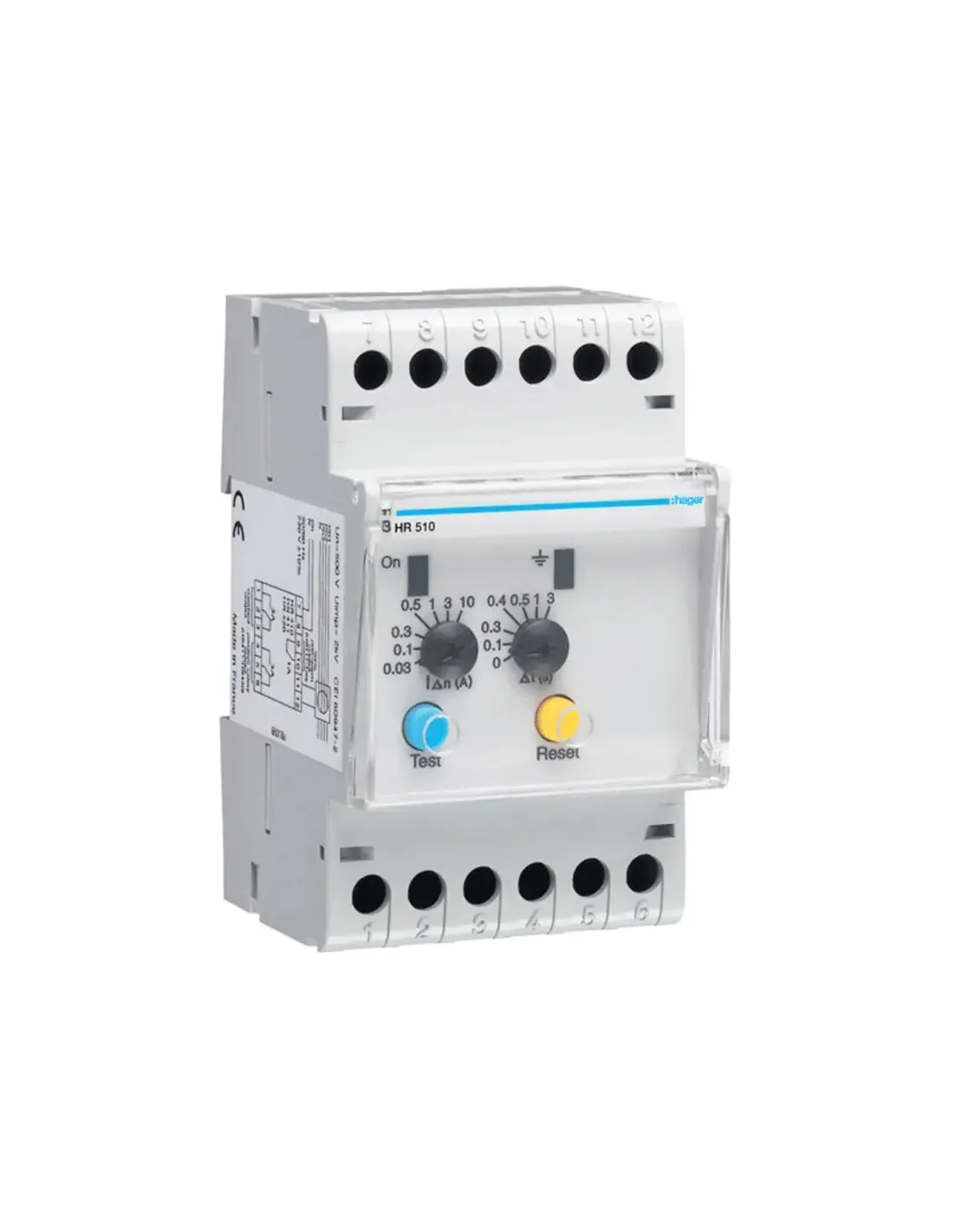

The Hager HR510 is an industrial-grade, 4-pole electronic residual current protection relay designed for commercial switchboards, automated control panels, and heavy-duty distribution systems. This precision Type A safety relay works in tandem with an external core-balance toroidal transformer to continuously monitor electrical networks for insulation faults and hazardous earth leakage.
Featuring front-accessible analog dials under a clear protective flip cover, it allows electrical contractors and maintenance technicians to customize both current sensitivity thresholds and trip time delays to match precise local system requirements.
Key Technical Specifications:
-
- Brand / Manufacturer: Hager
- Model Range: h3 series
- Catalog Number: HR510
- Network Poles: 4-Pole (4P) / Multi-phase monitoring
- Adjustable Sensitivity (\(I_{\Delta n}\)): 0.03A (30mA), 0.1A, 0.3A, 0.5A, 1A, 3A, and 10A
- Adjustable Time Delay (Δ t): 0s (instantaneous), 0.1s, 0.3s, 0.4s, 0.5s, 1s, and 3 seconds
- Operational Controls: Dedicated blue manual “Test” diagnostic button and a yellow indicator “Reset” switch
- Mounting Type: Standard 35mm symmetrical DIN rail (occupies 3 modules / 54mm width)
- Standards Compliance: IEC/EN 60947-2 Annex M
Free Courier Delivery Terms (South Africa Only)
-
- Courier Service: Complementary door-to-door delivery dispatched exclusively via The Courier Guy.
- Geographic Limits: This free shipping offer applies strictly to physical addresses within the borders of South Africa.
- Handling & Tracking: Orders ship out within 24 hours of cleared payment. A live tracking reference number will be issued directly to you upon dispatch.
7-Day Return & Functionality Warranty
- Coverage: This unit comes backed by a 7-day functionality warranty starting from the exact date of courier delivery or collection.
- Returns: If the device exhibits any mechanical defects or fails primary insulation/diagnostic testing within the first 7 days, it is eligible for a full refund.
- Exclusions: Warranty is void if the unit shows evidence of physical drop damage, terminal stripping, or internal circuitry burnouts caused by incorrect field wiring or terminal overloading.
